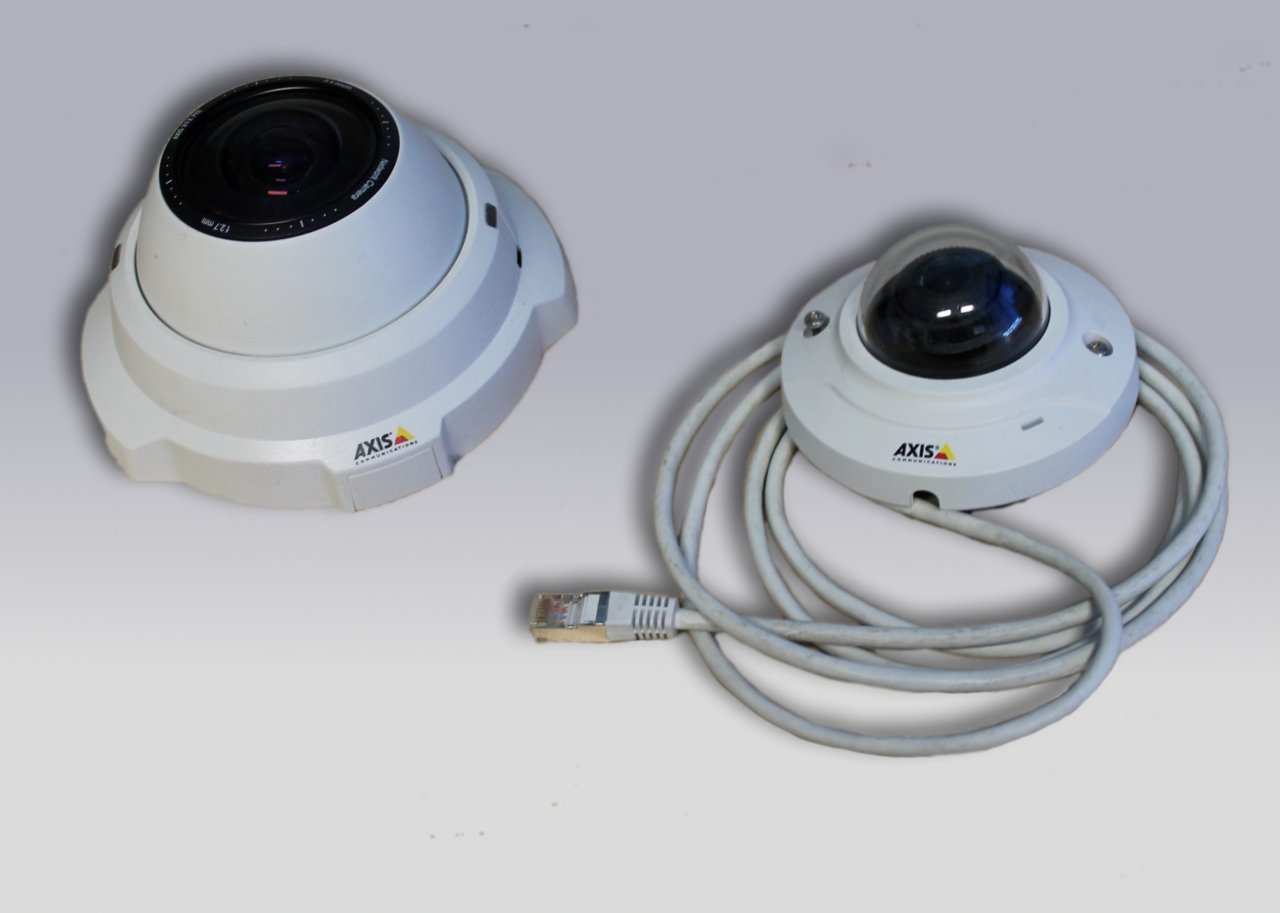

Axis IP dome network cameras — the ceiling-mounted camera type most SIRA-compliant commercial fit-outs specify for corridors, entrances and open-plan areas. Photo: Bungle, Wikimedia Commons, CC BY-SA 4.0.
Security systems are the fit-out trade clients notice least during construction and rely on most after handover. Unlike a partition wall, a camera blind spot or a door that fails open at the wrong moment stays invisible until the day it actually matters — which is exactly why a cctv access control fit out dubai project has to be engineered against a named regulatory standard, not assembled from whatever cameras and readers a contractor happens to stock. In Dubai, that standard is set by SIRA, and getting it wrong does not just risk a weak security posture; it blocks the Fit-Out Completion Certificate the tenant needs to legally occupy the space.
The rules exist because a commercial security system now sits inside three separate accountability chains: the Security Industry Regulatory Agency licenses both the installer and the premises, Dubai Civil Defence enforces the fire-egress rules that override every access control setting the moment an alarm triggers, and the building's own fire alarm and BMS systems have to interface cleanly with whatever camera and door hardware the fit-out specifies. Sequencing a cctv access control fit out dubai scope against all three from the design stage is materially cheaper than a rejected Security Plan Certificate or a failed civil defence inspection forcing rework after the ceiling is closed.
This guide sets out what a cctv access control fit out dubai project actually covers, the SIRA licensing and Security Plan Certificate process, the fail-safe versus fail-secure rule that most often fails inspection, what it costs per camera and per door in 2026, and how the whole scope is sequenced against the rest of the fit-out programme. For the wider budget this sits inside, see our guide to office fit-out cost in Dubai, and for how it is coordinated against the rest of the trades, see our guide to MEP coordination on a UAE fit-out.
What a CCTV and Access Control Fit-Out Covers
A commercial security installation is not two separate trades bolted together at the last minute — it is a single engineered subsystem with three tightly interdependent layers. A properly scoped cctv access control fit out dubai project addresses all three from the same design drawing, because a camera layout that ignores door hardware, or a door schedule that ignores the fire alarm interface, is what generates rework later.
SIRA-compliant IP cameras at entrances, corridors, cash points and server rooms, cabled back to a networked video recorder (NVR) with enough local storage for the mandated retention period and enough bandwidth to feed VideoGuard.
Card, fob or biometric readers, door controllers, electric locks and a central management panel governing who can open which door, and when — the layer that has to yield instantly to the fire alarm on every escape route.
The wiring and software bridge between the fire alarm panel, the access control panel and the BMS — the layer that unlocks fail-safe doors, slews cameras to an alarm zone, and pushes the live feed to SIRA's VideoGuard platform.
CCTV Camera Network and NVR Storage
The camera layer of a cctv access control fit out dubai project starts with a coverage plan mapped against SIRA's risk-based zoning, not a fixed camera count. General circulation areas, corridors and open-plan floors typically need only baseline 4K/4MP fixed or dome cameras, while cash counters, server rooms, main entrances and loading docks are treated as higher-risk zones that warrant 8MP resolution, tighter fields of view and, in some cases, a dedicated PTZ (pan-tilt-zoom) camera for an operator to drive manually. Every camera feeds back to a networked video recorder sized with enough local storage to hold the full retention window at the resolution and frame rate specified, plus enough uplink bandwidth reserved for the continuous VideoGuard connection SIRA requires on most commercial premises.
Access Control Hardware: Readers, Controllers and Locks
Inside the access control layer, every door on the schedule gets a reader (proximity card, fob, mobile credential or biometric), a door controller that makes the access decision, and a lock mechanism — and the lock type is not a style choice, it is a compliance decision. A magnetic lock (maglock) is inherently fail-safe: cut its power and it releases immediately, which is why Dubai Civil Defence mandates it on every door along a designated fire-exit route. An electric strike is inherently fail-secure: it stays locked on power loss, and belongs only on doors that sit outside the fire-egress path, such as a server room, IT cabinet or cash office where controlled access matters more than instant release. Getting this pairing backwards on even a single door is the single most common reason a cctv access control fit out dubai project fails its civil defence inspection.
Dubai Regulatory Framework: SIRA, Dubai Police and Civil Defence
Navigating approvals for a cctv access control fit out dubai project means satisfying two separate authorities, each with its own licensing chain and inspection: SIRA governs the security system itself, and Dubai Civil Defence governs how that system behaves during a fire. Skipping either one does not save time — it just moves the delay to the point where the system cannot legally be switched on.
SIRA Licensing: Company Level and Premises Level
SIRA licensing operates on two levels that a fit-out has to satisfy separately. At the company level, the business installing the system must hold a SIRA security-activity licence, and the individual technicians on site should hold SIRA's CCTV Technician certification from an SIRA-accredited training institute — an installer without this cannot legally sign the compliance paperwork the premises needs. At the premises level, it is the operating business (usually the tenant, not the landlord) that submits the security system design for SIRA to review, approve and ultimately inspect before anything is switched on. Our guide to the DDA fit-out approval process covers the equivalent building-permit route in TECOM free zones that a security scope has to sit inside alongside the SIRA submission.
The Security Plan Certificate and VideoGuard Registration
The core premises-level submission is the Security Plan Certificate (SPC): a package typically covering the trade licence, tenancy contract, a floor plan with the camera layout marked, the camera specification sheet, storage and retention details, and the licensed installer's details. Once approved, most commercial premises in Dubai are also required to connect their NVR to VideoGuard, SIRA's remote telemetry platform, which gives Dubai Police live access to the camera feed for compliance verification and, where needed, emergency or investigative access. A cctv access control fit out dubai project that leaves VideoGuard bandwidth and NVR compatibility out of the initial network design usually ends up re-cabling or re-specifying hardware after the fact.
| Requirement | 2026 SIRA Baseline |
|---|---|
| Minimum resolution | 4K / 4MP (general zones) |
| High-security zones | 8MP recommended (cash points, server rooms, entries) |
| Frame rate | 25 fps minimum |
| Infrared range | ≈30 metres effective |
| Dynamic range | WDR required for high-contrast entrances |
| Footage retention | 31 days minimum |
| Remote monitoring | VideoGuard integration on most commercial premises |
Fail-Safe vs Fail-Secure: The Rule That Fails Civil Defence Inspection
Dubai Civil Defence enforces a strict, non-negotiable code on how electronic doors behave in a fire: every door on a designated escape route must unlock automatically, instantly, and independently of the access control software the moment a fire alarm activates. A cctv access control fit out dubai project gets this wrong more often through a mislabelled door schedule than through bad hardware — a maglock ordered for a server room, or an electric strike ordered for a fire stair door, both fail inspection even though each lock type is correctly manufactured and correctly wired for a different door.
| Parameter | Fail-Safe (Maglock) | Fail-Secure (Electric Strike) |
|---|---|---|
| State on power loss | Unlocked | Locked |
| Required on fire-egress doors | Yes — mandatory | No — not permitted |
| Typical use | Main entries, fire stairs, escape corridors | Server rooms, cash offices, IT cabinets |
| Manual override needed | Green break-glass beside the door | Not required for egress |
The fire alarm panel must be hard-wired to cut power to every fail-safe maglock on the escape route the instant an alarm triggers, entirely independent of whether the access control panel's own software is even running. On top of that automatic release, Dubai Civil Defence requires a physical green break-glass override mounted beside every access-controlled fire-exit door, so occupants can force it open even if both the fire panel interface and the access control system fail simultaneously. Our guide to Hassantuk fire alarm integration covers the wider DCD-mandated fire system a cctv access control fit out dubai scope has to interface with, and our civil defence inspection checklist covers the other common reasons a fit-out fails on inspection day.
2026 Cost per Camera and Access-Controlled Door in AED
The most common budgeting mistake on a cctv access control fit out dubai project is pricing a bare camera and a SIRA-compliant, VideoGuard-registered, fully certified one as if they were the same line item — the difference is not just the hardware, it is the labelling, testing, storage sizing and registration paperwork behind it.
| Item | Basic (AED) | SIRA-compliant, fully installed (AED) |
|---|---|---|
| Indoor IP camera (4MP) | 500 – 900 | 800 – 1,500 |
| Outdoor / high-security camera (8MP, WDR) | 900 – 1,600 | 1,500 – 3,000 |
| PTZ camera | 1,500 – 4,000 | 3,500 – 8,000 |
| Access door (reader, controller, maglock or strike) | 1,800 – 3,200 | 2,500 – 6,000 |
A basic-tier rate covers hardware and a bare cable pull with no SIRA design submission, no VideoGuard configuration and no as-built documentation — unsuitable for a new commercial fit-out that needs to legally operate. The fully compliant rate is the one that gets a Security Plan Certificate through SIRA review on the first submission. Door count and lock type move the number materially: a fire-egress door with a maglock, break-glass override and a hard-wired fire-panel interface costs more to install correctly than a single fail-secure strike on an internal store room, even though both appear as "one door" on a simple headcount.
Total Project Cost by Premises Type
Project-level budgets for a cctv access control fit out dubai scope scale with risk profile as much as with square footage, since NVR storage, door count and VideoGuard bandwidth are driven by the business type, not just the floor plate.
6-12 cameras, 2-4 access-controlled doors (main entry, back-of-house, cash office), a compact NVR and a single SIRA submission covering the whole unit.
15-30 cameras across floors and entries, 6-12 doors including server room and IT cabinet, VideoGuard-registered NVR with 31-day storage sized for the full camera count.
40+ cameras, 20+ access-controlled doors, redundant NVR storage, integrated fire-panel/BMS interface across multiple floors, and a phased SIRA submission per tenancy.
These figures cover the CCTV and access control scope alone. Where the same fit-out also includes structured cabling for the camera and reader network, see our guide to structured cabling fit-out in Dubai for the containment and testing standard that carries this system's cabling, and where server room storage for the NVR is part of the scope, our guide to fit-out services covers how V Square scopes the wider technology package end to end.
Step-by-Step Fit-Out Programme and Timeline
A cctv access control fit out dubai project has to sit inside the master construction programme so that camera and door cabling closes into the ceiling and walls at the right moment, and so the SIRA inspection lands after everything it needs to see is actually installed and working.
Risk-based camera and door schedule drawn up, Security Plan Certificate submitted with floor plan and specification sheet.
Camera and reader cabling routed and pulled, door frames prepared for maglock or strike mounting ahead of ceiling and wall closure.
Cameras, readers, controllers and locks terminated and commissioned; NVR configured with retention storage and network uplink.
Fail-safe doors wired to the fire alarm panel and tested to confirm instant release on alarm trigger; break-glass overrides fitted.
SIRA inspects the installed system against the approved SPC, VideoGuard connection is verified live, and the system is registered as operational.
Common Reasons a System Fails SIRA or Civil Defence Inspection
Most failures on a cctv access control fit out dubai project trace back to a handful of avoidable, recurring errors rather than genuinely difficult technical problems.
- Fail-safe and fail-secure locks swapped. A fail-secure electric strike installed on a fire-egress door will fail civil defence inspection outright, regardless of how well the rest of the system performs.
- No fire-panel interface on maglocks. A maglock that only releases through the access control software, with no hard-wired connection to the fire alarm panel, does not meet the instant-release requirement.
- Missing break-glass overrides. Every access-controlled fire-exit door needs a physical green break-glass switch mounted beside it, independent of any electronic system.
- Camera resolution or retention below SIRA baseline. Specifying sub-4K cameras or an NVR with less than 31 days of storage at the required resolution is a straightforward SPC rejection.
- No VideoGuard-ready bandwidth. Networks sized only for local recording, with no reserved uplink for continuous VideoGuard streaming, force a costly re-cable after the SIRA inspection flags it.
- Installer without current SIRA licensing. An installer whose company or technician-level SIRA licence has lapsed cannot legally sign the compliance certificate the SPC submission depends on.

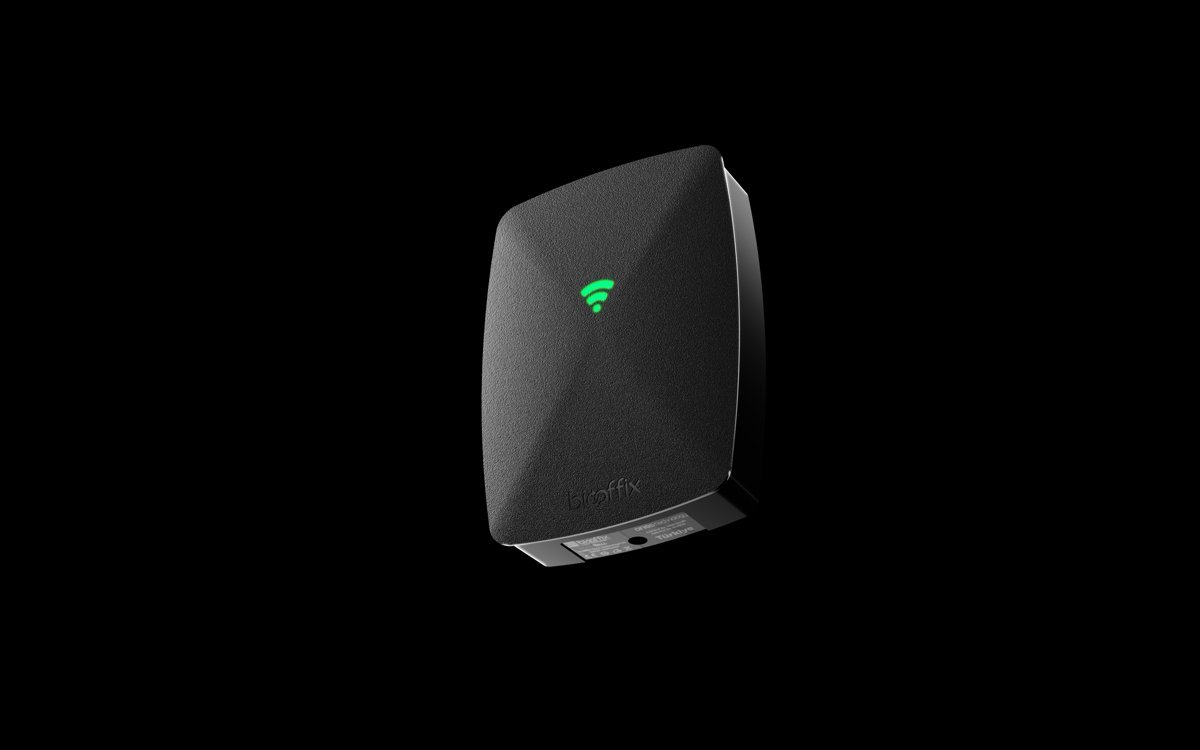

A wall-mounted access control reader connecting to the door controller over OSDP or Wiegand — the hardware behind every card, fob or mobile-credential door on a commercial fit-out. Photo via Wikimedia Commons, CC BY 4.0.
How V Square Runs a CCTV and Access Control Fit-Out
At V Square Project Management Services, we treat a cctv access control fit out dubai scope as a compliance-critical engineering discipline from week one, coordinated directly against the fire alarm and MEP programme rather than left to a security subcontractor working in isolation. Our team classifies every door against the fire-egress plan before ordering a single lock, so the fail-safe/fail-secure schedule is correct before first fix begins, and we submit the Security Plan Certificate early enough that SIRA's review does not sit on the critical path to handover.
We commission and test every fire-panel interface ourselves before the civil defence inspection, so the break-glass overrides, maglock release timing and VideoGuard connection are already verified working on inspection day, not discovered as defects afterward.
To plan a compliant, correctly specified cctv access control fit out dubai project alongside the rest of your commercial fit-out, visit our fit-out services page or contact our Dubai office to schedule a technical design review.
Planning a CCTV and Access Control Fit-Out in Dubai?
V Square gets the SIRA submission and fail-safe egress schedule right the first time, and sequences camera and door installation against the rest of your fit-out programme.
Book a Consultation →Frequently Asked Questions
Does a commercial CCTV and access control system in Dubai need SIRA approval?
Yes. The Security Industry Regulatory Agency (SIRA), part of Dubai Police, regulates both the companies that install security systems and the premises that operate them. A cctv access control fit out dubai project needs a SIRA-licensed installer, a submitted Security Plan Certificate covering the floor plan and camera layout, and a final SIRA inspection before the system can legally go live.
What camera resolution and retention period does SIRA require in 2026?
SIRA's 2026 baseline is a minimum 4K/4MP resolution for general surveillance zones, rising to 8MP for high-security areas such as cash counters, server rooms and entry points, at a minimum 25 frames per second with infrared coverage effective to roughly 30 metres. Recorded footage must be retained for at least 31 days and the NVR must be able to integrate with SIRA's VideoGuard telemetry platform.
What is VideoGuard and why does a fit-out need to plan for it?
VideoGuard is SIRA's remote monitoring platform, which gives Dubai Police live access to a registered premises's camera feeds during emergencies or investigations. Most commercial buildings must connect their NVR to VideoGuard as a condition of SIRA approval, so a cctv access control fit out dubai project has to specify NVR hardware and network bandwidth that supports this integration from day one, not retrofit it later.
What is the difference between fail-safe and fail-secure access control doors?
A fail-safe lock (typically a magnetic lock) unlocks automatically the instant power is cut, which Dubai Civil Defence mandates on every designated fire-exit route so occupants are never trapped behind a locked door during an evacuation. A fail-secure lock (typically an electric strike) stays locked on power loss and is used only on doors that are not part of the fire-egress path, such as a server room or a cash office.
Does an access-controlled door still need a manual override for fire alarms?
Yes. Dubai Civil Defence requires a physical green break-glass override mounted beside every access-controlled fire-exit door, so occupants can force the door open even if the access control panel or its software has failed. The fire alarm panel must also be wired to cut power to every fail-safe maglock on the escape route the instant an alarm is triggered, independent of the access control software.
What does a cctv access control fit out dubai project cost per camera in 2026?
A basic indoor IP camera with installation typically runs AED 800-1,500 fully fitted, rising to AED 1,500-3,000 for a SIRA-compliant 4K/8MP camera with WDR and extended IR range. A small office with 6-16 cameras generally costs AED 4,800-18,000 end to end, while a larger commercial fit-out with 20 or more cameras typically runs AED 15,000-50,000 depending on NVR storage, VideoGuard integration and cabling complexity.
What does access control cost per door in a Dubai commercial fit-out?
A single door fitted with a card or biometric reader, controller, electric strike or maglock and cabling back to the panel typically runs AED 2,500-6,000, depending on lock type and whether it sits on the fire-egress path. A full building system covering multiple doors, a central controller and software licensing for a mid-size commercial premises generally falls in the AED 15,000-40,000 range.
Note on sources. SIRA technical requirements, VideoGuard integration, Dubai Civil Defence fail-safe egress rules and 2026 AED cost figures are summarised from current UAE security-systems contractor, integrator and SIRA-approved installer guidance, since SIRA does not publish a single consolidated public cost tariff. Requirements, exact technical thresholds and per-item pricing vary by premises risk classification, building and installer, and change without a public changelog. Confirm current requirements with SIRA or Dubai Civil Defence before relying on any figure for budget, design or compliance purposes.
